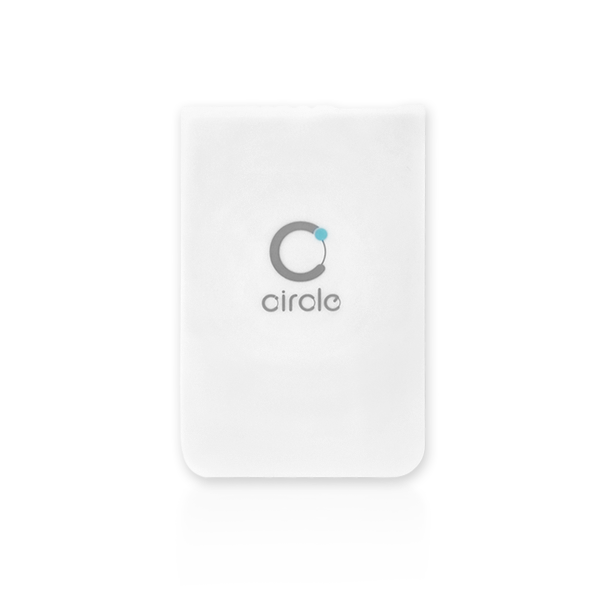

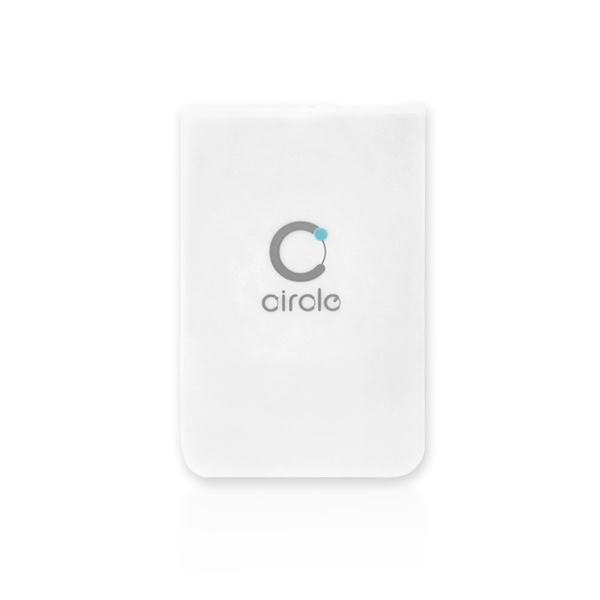

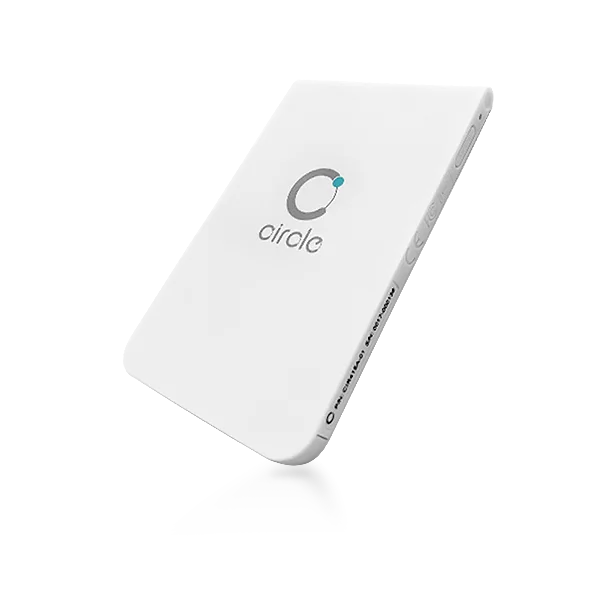

CIR415A - Bluetooth® Contactless Smart Card Reader

CIR415A

Bluetooth® Contactless Smart Card Reader

A wireless contactless smart card reader in a sleek and ultra-slim design supporting latest Bluetooth® and contactless technologies

Specifications

Sleek and ultra-slim

    • Supports Bluetooth® 5.0
    • Supports ISO/IEC 14443, ISO/IEC 18092 and ISO/IEC 15693 standards
    • Supports ISO/IEC 14443-4 Type A & B cards,
      ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, J-LIS cards, Calypso and NFC Forum Type 1/2/3/4/5 Tags
    • Supports 1 x ISO/IEC 7816 Part 3/4 SAM slot (Optional)
    • Supports extended APDU
    • Complies with CCID standard
    • Conforms to PC/SC specifications
    • Firmware upgradable
    • Works on different operating systems

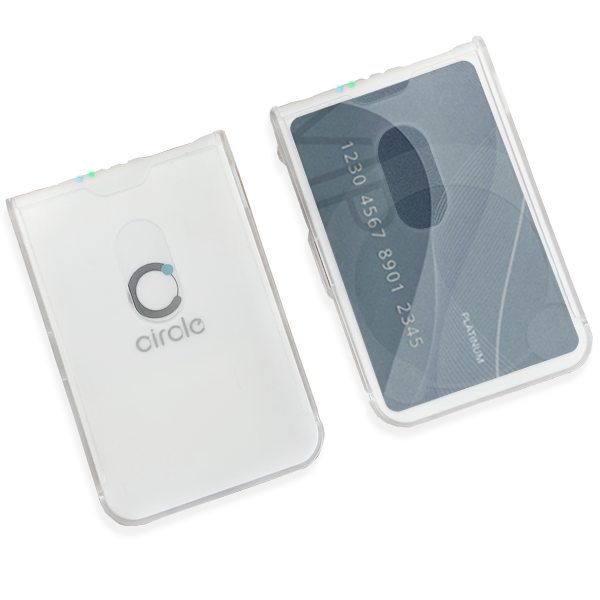

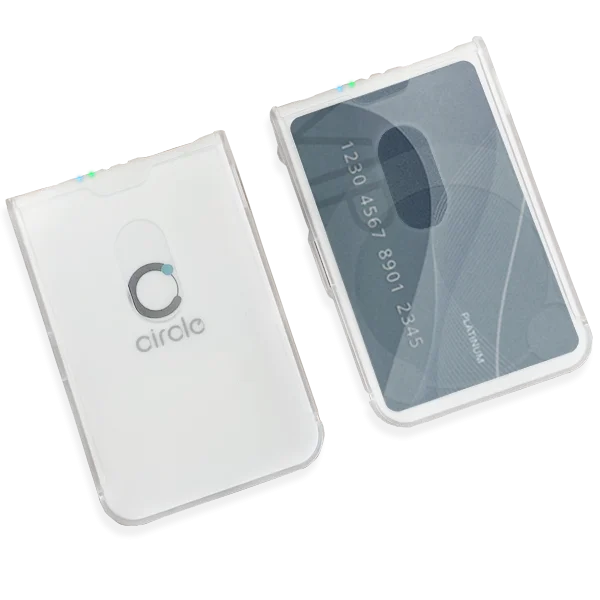

    • A transparent card holder is included

Power

    • USB Supply Voltage: USB Bus-powered (DC 5V) *
    • USB Rated Current: At least 500mA
    • Battery: 3.7V 400mAh Rechargeable Lithium-ion Battery (charged through USB)
*Please use the specified voltage to charge the product

Ordering Information

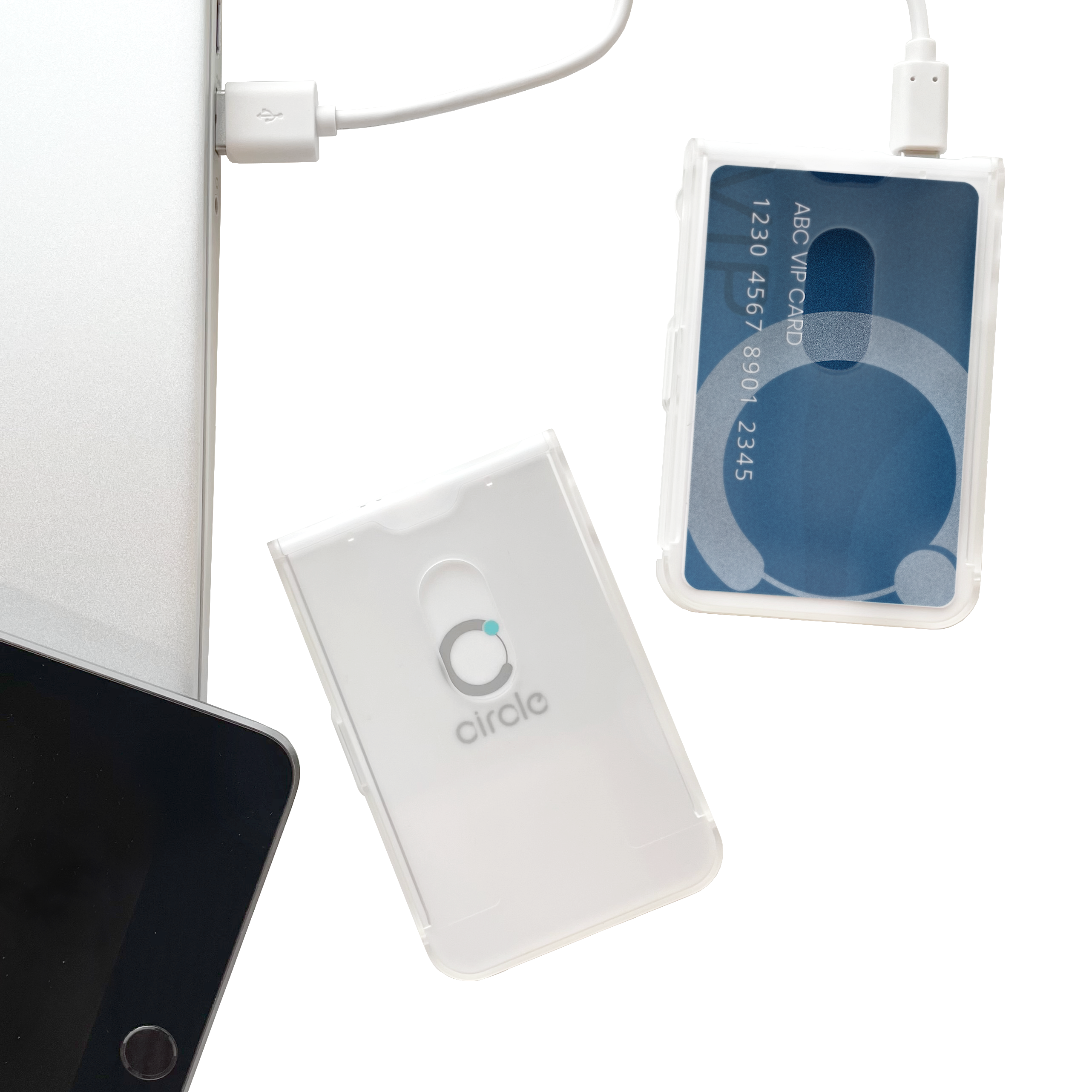

  • CIR415A-01: USB Type C (Female) Connector, with SAM slot
CIR415A - Bluetooth® Contactless Smart Card Reader
Downloads for CIR415A

Bluetooth Windows Driver Installer

21 Sep 23     |     v2.0.7.0  (Driver v2.0.7.0)     |

Bluetooth Windows Driver

21 Sep 23     |     v2.0.7.0     |

Bluetooth Android Library

03 Sep 24     |     v1.4.9     |

Bluetooth iOS Swift Library

23 Apr 23     |     v1.5.8     |

USB Windows Installer (CIR415)

13 Jun 23     |     v2.3.0.0  (Driver v2.3.0.0)     |

USB Windows Driver (CIR415)

13 Jun 23     |     v2.3.0.0     |

USB Linux Installer

12 Mar 24     |     v2.1.8  (Driver v2.1.8)     |

USB Mac Installer

20 Feb 24     |     v2.1.8  (Driver v2.1.8)     |

USB Linux & Mac Driver

05 Feb 24     |     v2.1.8     |

USB Android Library

28 August 24     |     v1.4.8     |
