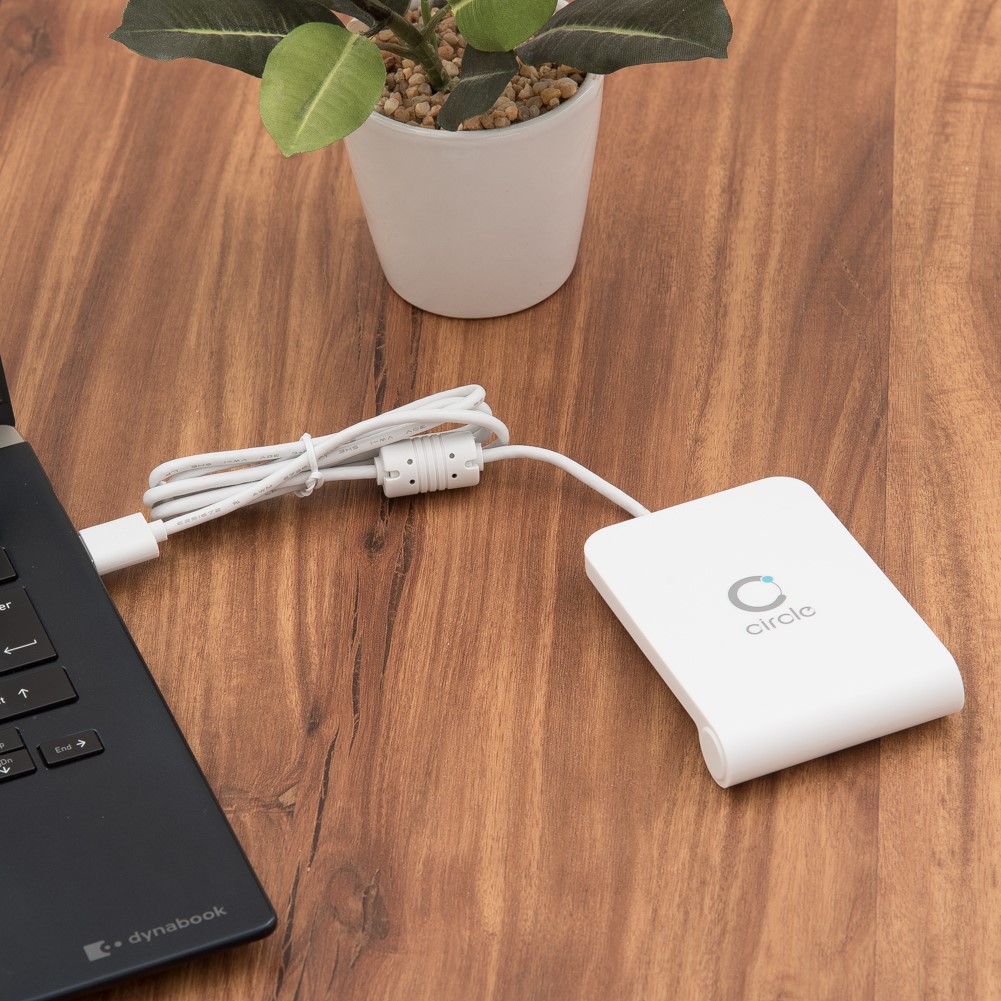

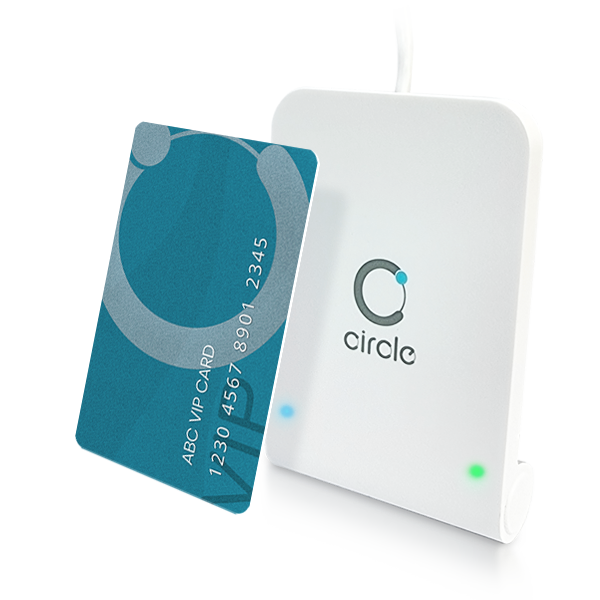

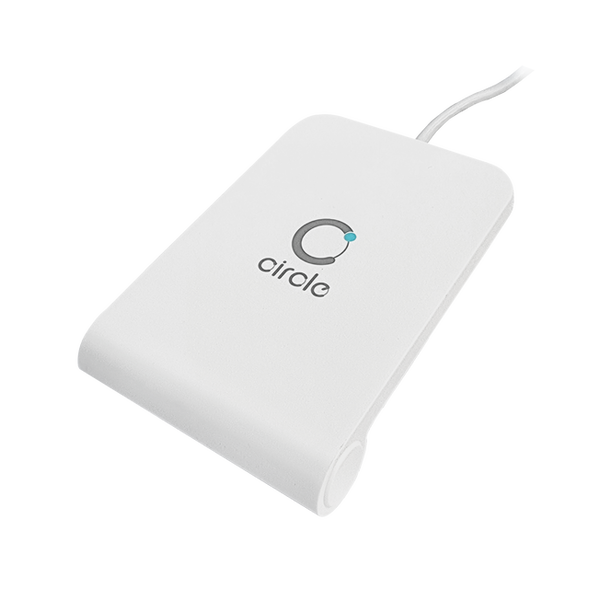

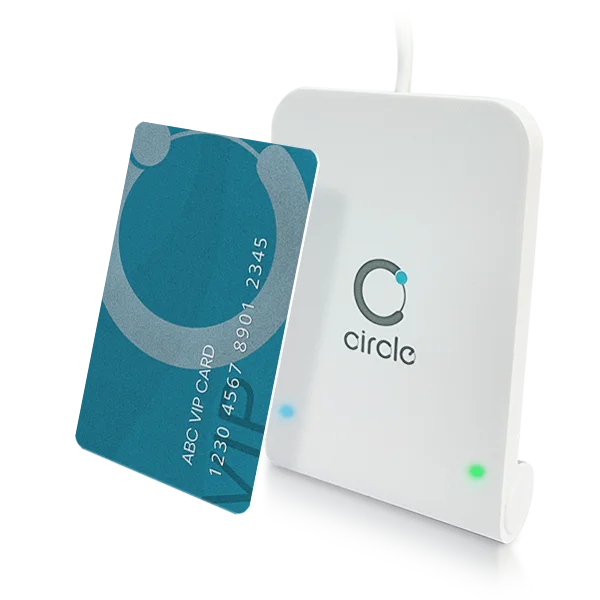

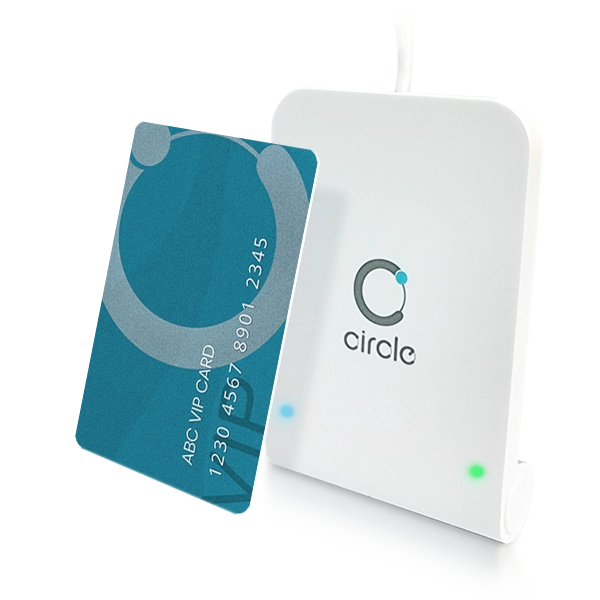

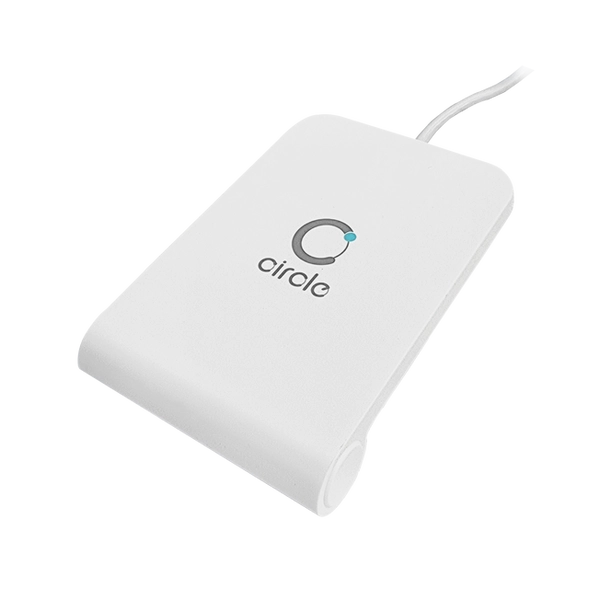

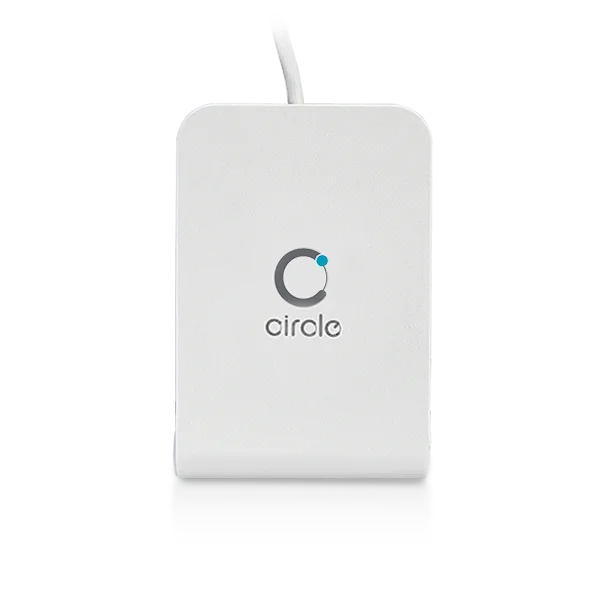

CIR315A - Contactless Smart Card Reader


Contactless Smart Card Reader

A perfect choice for comprehensive contactless applications utilizing secure access module


Flexible and interoperable

  •  Supports ISO/IEC 14443, ISO/IEC 18092 and ISO/IEC 15693 standards
  •  Supports ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, J-LIS cards, Calypso and NFC Forum Type 1/2/3/4/5 Tags
  • Supports 1 x ISO/IEC 7816 Part 3/4 SAM slot (Optional)
  • Supports extended APDU
  • Complies with CCID standard
  • Conforms to PC/SC specifications
  • Firmware upgradable
  • Works on different operating systems
  • Optional connector types: USB A or USB C

Ordering Information

  • CIR315A-01: USB Type A Connector, with SAM slot (Standard)
  • CIR315A-02: USB Type A Connector, without SAM slot (MOQ is required)
  • CIR315A-03: USB Type C Connector, with SAM slot (MOQ is required)
  • CIR315A-04: USB Type C Connector, without SAM slot (MOQ is required)
* If order quantity does not meet the MOQ of CIR315A-03 & CIR315A-04, an extension cable of USB Type C Male to USB Type A Female enables you to connect CIR315A-01 with any USB Type C port of your devices. Contact us to learn more.
CIR315A - Contactless Smart Card Reader
Downloads for CIR315A

USB Windows Installer (CIR315)

13 Jun 23     |     v2.3.0.0  (Driver v2.3.0.0)     |

USB Windows Driver (CIR315)

13 Jun 23     |     v2.3.0.0     |

USB Linux Installer

12 Mar 24     |     v2.1.8  (Driver v2.1.8)     |

USB Mac Installer

20 Feb 24     |     v2.1.8  (Driver v2.1.8)     |

USB Linux & Mac Driver

05 Feb 24     |     v2.1.8     |

USB Android Library

23 Dec 22     |     v1.4.4     |
